Project Name
Microbit mini-console.
Author: Theodhoraq Mihallari
GitHub Project Link: link_to_github
Description
A mini-console for small games that two or more people can play.The games are:
- Rocket and meteor The player moves the rocket using the microbit's buttons left and right to avoid collision with the meteor coming from above.
- Guess the distance The microbit gives a random distance and players must put an object as close to a ultrasonic sensor (HCSR) as possible,who's nearest wins.
- Repeat the pattern The microbit outputs in a random pattern moves of 4 types (UP,DOWN,LEFT,RIGHT). The player,through a joystick,must repeat that pattern.If wrong,the game restarts. The speed and difficulty increase with time.
Motivation
I couldn't think of anything meaningfull to do,given our situation and resources so i picked this project because of how versatile it can be,i can implement multiple ideas with different hardware,and turn it into something fun.Also given how compact the microbit is,and with build in screen and buttons it would be a big help. (Since I'll be using a breadboard connecting screens and buttons would just make the product messy)

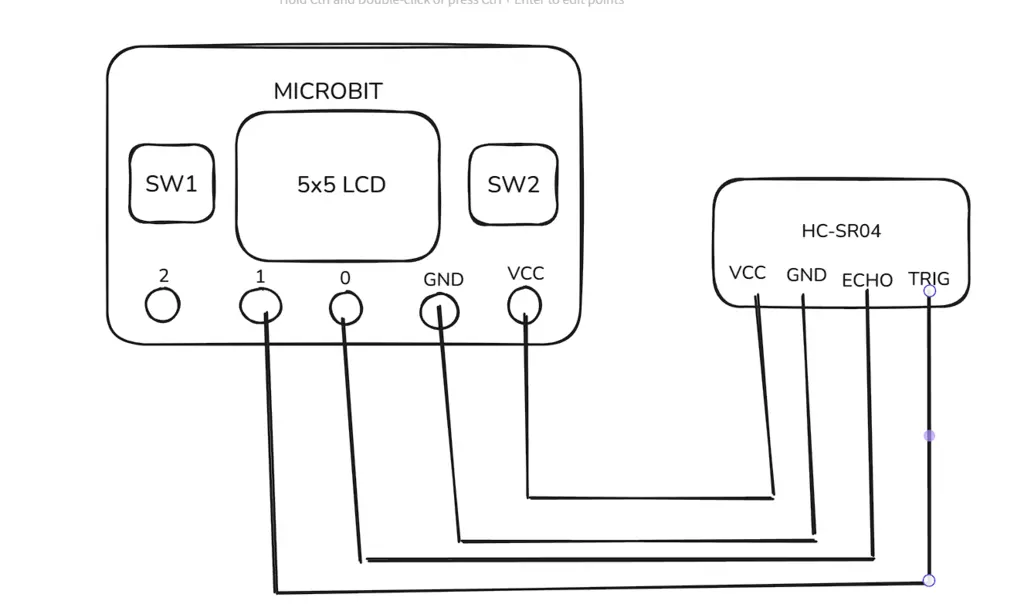

Architecture
Given the limited number of inputs on the microbit,we have to connect the components for each game (it's also cleaner that way)
Components: Microbit (with buttons and screen) Joystick - HW-504 Ultrasonic sensor - HC-SR04
Log
Week 5 - 11 May
Week 12 - 18 May
Week 19 - 25 May
Hardware
Micro:bit Purpose: Main microcontroller unit Function: Controls the entire system logic, reads sensor input, drives the display, and handles button presses.
HC-SR04 (Ultrasonic Sensor) Purpose: Measures distance to nearby objects Function: Emits ultrasonic waves and calculates distance based on echo return time. The Micro:bit reads these measurements to detect proximity or obstacles.
HW-504 (Joystick Module) Purpose: Provides directional input Function: Acts as a 2-axis analog input device.
Breadboard + jumper wires Purpose: Prototyping without soldering and electrical connections between components Function: Connect all the components

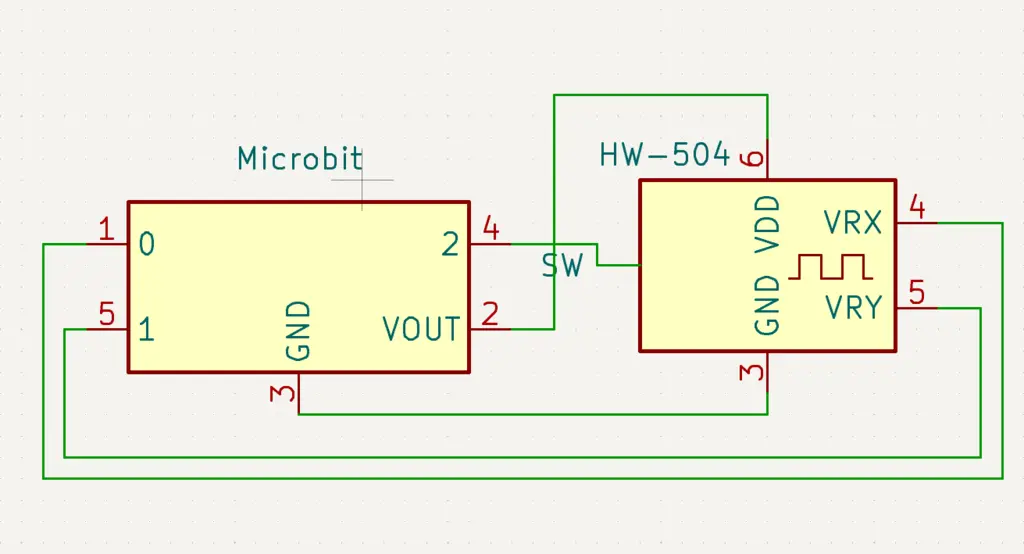

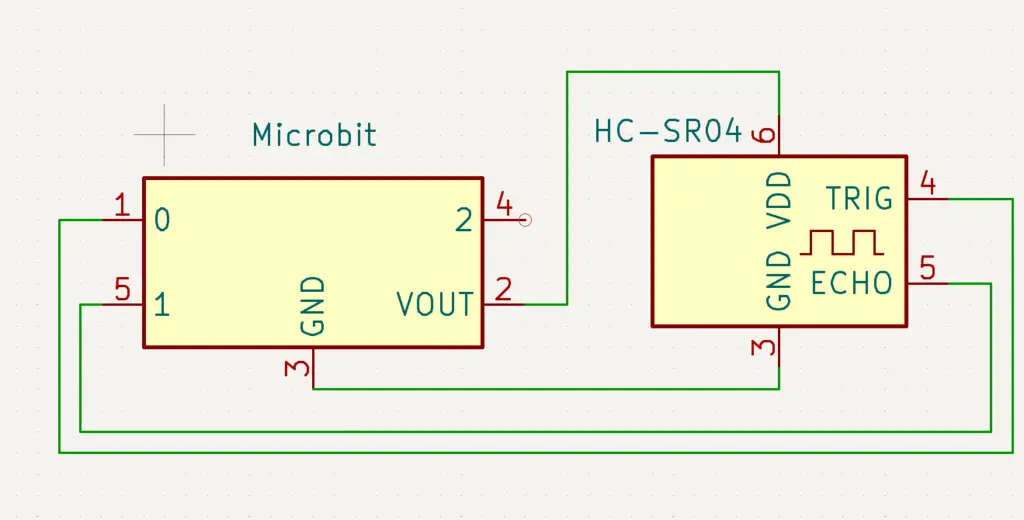

Schematics
Bill of Materials
| Device | Usage | Price |
|---|---|---|
| Microbit | Microcontroller | 75 RON |
| HC-SR04 | Ultrasonic sensor | 8 RON |
| HW-504 | Joystick | 6 RON |
| Breadboard | Connect all components | 10 RON |
