Musical Box
A multi-instrument musical interaction system using gesture and touch.
Author: Duminica Ana-Maria
GitHub Repository: github.com/UPB-PMRust-Students/proiect-Ana-MariaDuminica
Description
Musical Box is an interactive embedded system that simulates a small music instrument station, allowing users to play piano notes, drums or guitar-like sounds using hand gestures or capacitive touch. A dedicated AutoPlay mode also plays a pre-programmed melody. The system uses a Raspberry Pi Pico, an ultrasonic sensor, capacitive touch sensors, RGB LEDs and a piezo buzzer, creating both audio and visual feedback.
Motivation
Being passionate about music, I wanted to incorporate this personal interest into a technical project that would allow me to explore creativity through embedded systems. This project offered the opportunity to design an interactive musical device by combining sensor input, real-time audio feedback and visual effects. It represents a blend of artistic expression and engineering and allowed me to apply and deepen my knowledge of embedded programming while creating something both functional and engaging.

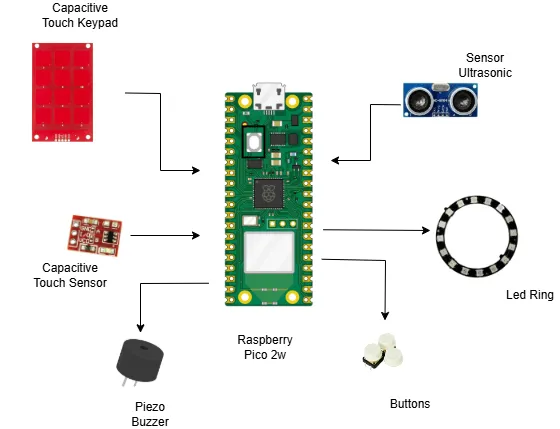

Architecture
Mode Manager
The central control component that handles input from buttons and switches between the four interaction modes (Piano, Drums, Guitar, AutoPlay).
Input Handler
Unified interface that reads user interaction from different sensors, depending on the active mode (capacitive touches, gestures or distance sensing).
Sensor Controller
Generates musical output by translating inputs into tone frequencies. It handles note playback, percussive sounds and automatic melodies.
Visual Feedback Controller
Manages the RGB LED effects and synchronizes lighting animations with user input and active mode.
The Input Handler receives data from the physical interface (buttons, touchpads, sensors) and forwards it to the Mode Manager.
The Mode Manager activates the corresponding logic for the selected mode (Piano, Drums, etc.).
Based on the mode, the Sound Controller is triggered to play audio and the Visual Feedback Controller is triggered to animate lights.
The architecture ensures that all input-output actions are synchronized and each mode operates independently but within the same event-driven structure.
Log
Week 5 - 11 May
Week 12 - 18 May
Week 19 - 25 May

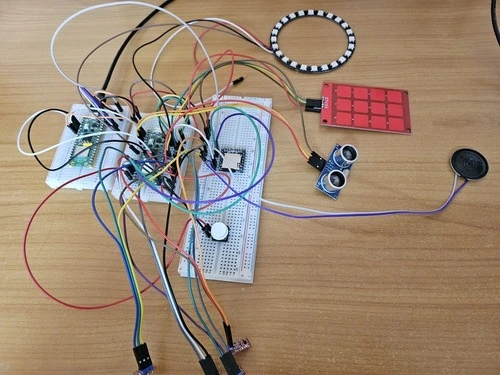

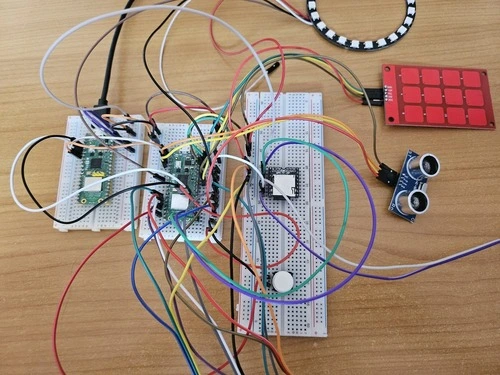

Hardware

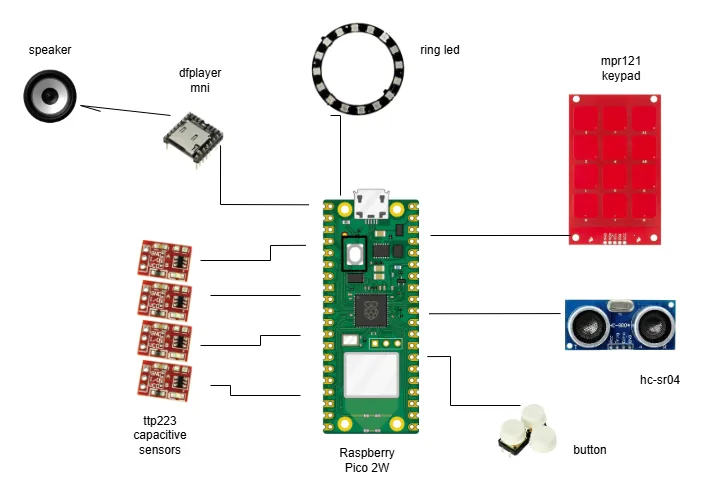

Schematics
Bill of Materials
| Device | Usage | Price |
|---|---|---|
| Raspberry Pi Pico W (x2) | The microcontroller (main logic & debug probe) | 60 RON |
| Breadboard (x2) | Prototyping area for each Pico | 15 RON |
| Capacitive Touch Sensor TTP223 | Detecting touch for interaction | 5 RON |
| Push Buttons (x3) | Manual input (mode switching, triggering sounds) | 3 RON |
| WS2812B RGB LED Ring (24 LEDs) | Visual feedback and lighting effects | 25 RON |
| Piezoelectric Buzzer (x2) | Audio output for instruments | 3 RON |
| HC-SR04 Ultrasonic Sensor | Gesture-based distance control (e.g., drums) | 15 RON |
| MPR121 Touch Keypad Module | Piano input (capacitive keys) | 10 RON |
| Jumper Wires M-M | Connecting components on breadboards | 20 RON |
| Jumper Wires F-M (approx. 10) | For sensors/modules requiring different headers | 20 RON |
Software
| Library | Description | Usage |
|---|---|---|
| embassy-rp | HAL for Raspberry Pi Pico | Access to hardware peripherals (GPIO, PWM, I²C, etc.) |
| embassy-time | Async delays & timers | Used for non-blocking delays and timing |
| defmt + defmt-rtt | Embedded logging via RTT | Sending debug messages to the host |
| panic-probe | Minimal panic handler with logging | Displays panic messages through RTT |
| embedded-hal | Hardware Abstraction Layer traits | Interface for I²C, PWM, and other peripheral drivers |
| smart-leds | WS2812 RGB LED control | Controls the RGB LED ring |
