Ultimate tic tac toe
Ultimate tic tac toe implemented in rust
Author: Grumazescu Amalia - Maria
Github Project Link: https://github.com/UPB-PMRust-Students/proiect-amaliagrumazescu
Description
Ultimate Tic Tac Toe is a variation of the classic Tic Tac Toe game, composed of 9 games of classic Tic Tac Toe on a 3x3 board. The game is a lot more complex than the classic variation, with each move determining where the other player is allowed to place their next symbol. When a player places a symbol into a case on the small board the other player is forced to place their symbol in the corresponding small board. When someone completes a small board it is replaced by a large symbol and no further moves are allowed in that board, with the game ending when one player has a line of large symbols.
Motivation
The decision to implement this game was rather simple, as I always enjoyed playing the classic Tic Tac Toe, however it was too simple to code, so I decided to challange myself with the more complex variation, known as Ultimate Tic Tac Toe
Arhitecture
Log
Week 28 April - 4 May
Final documentation
Week 5 - 11 May
Checking the components and initial testing of the build
Week 12 - 18 May
Final hardware design
Initial software testing
Week 19 - 25 May
Final version of the project
Hardware
Raspberry Pi Pico 2W - main controller of the components LCD Display - displays the game Buttons - used to control the game Breadboard - to simplify the connections

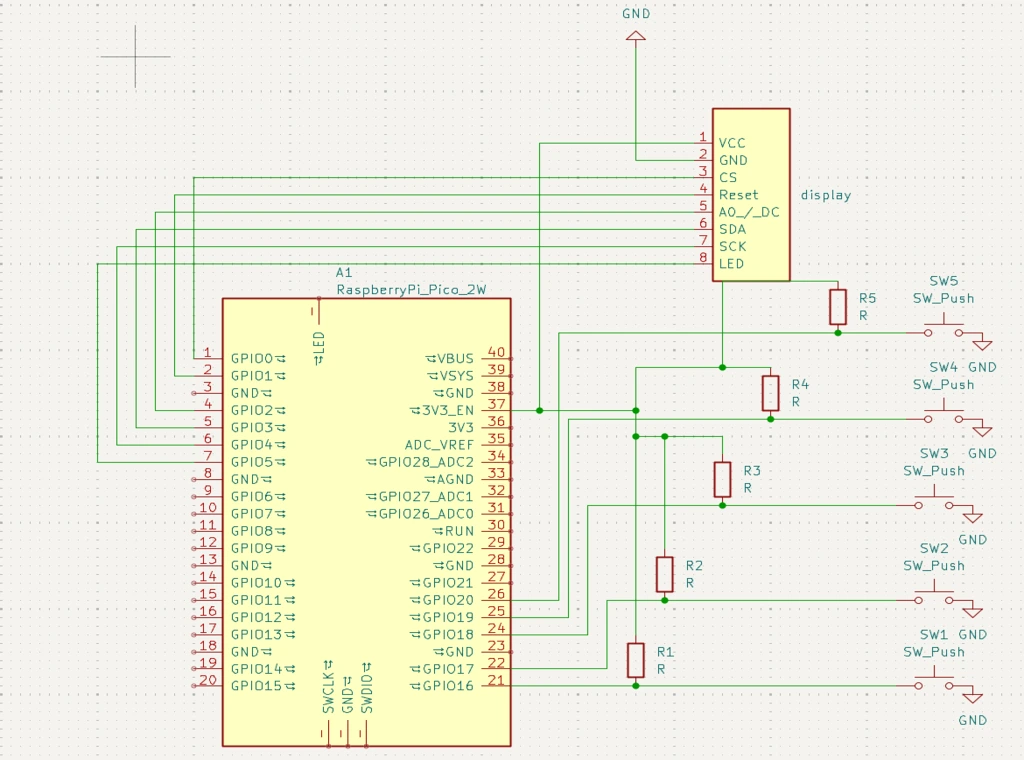

Schematics
Bill of materials
| Device | Usage | Price |
|---|---|---|
| Raspberry Pi Pico 2W | Main controller of components | 40 RON |
| Buttons | 5 buttons for the game controls | 2 RON |
| Rezistors | 10k Ohm rezistors for the buttons | 1 RON |
| Breadboard | 400 point breadboard to ease connecting the pieces | 5 RON |
| Cables | Used for connections between the components | 6 RON |
| Lcd display | For displaying the game | 45 RON |
Software
| Library | Description | Usage |
|---|---|---|
| st7789 | Display driver | Used of the LCD display |
| embedded-graphics | 2D graphics library | Used for drwaing for the display |
